Linux VPS hosting with deployment pipeline

Hosting on a Linux virtual machine is a complicated method, yet it also allows you to control everything and is one of the cheapest method. In this tutorial, you will discover:

• Required tools.
• Publishing a Blazor Server website.
• Compare between deployment modes.
• Set up the Linux VPS.
• Deploy your website manually.
• Configuring Linux service.
• Install and configure NGINX.
• Speed up Blazor Server website.
• Setup GitHub action.
• Common mistakes.

Thanks to Discord user Grimston#0001 at NPipes for sponsoring a VPS machine that used to make this tutorial. You can contribute to Blazor School to get more tutorials like this.

Required tools

To manage the Linux VPS, you need a tool to execute commands and a tool to transfer file between your computer and the VPS machine. Bitvise SSH Client does both and is recommended.

Publishing a Blazor Server website

Before deploying your website to a Linux VPS, you need to publish your website to a folder first.

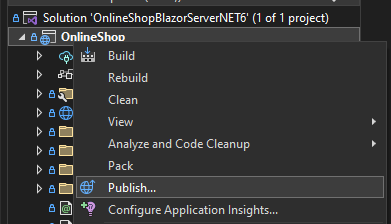

1. Right-click your Blazor Server project and select Publish...

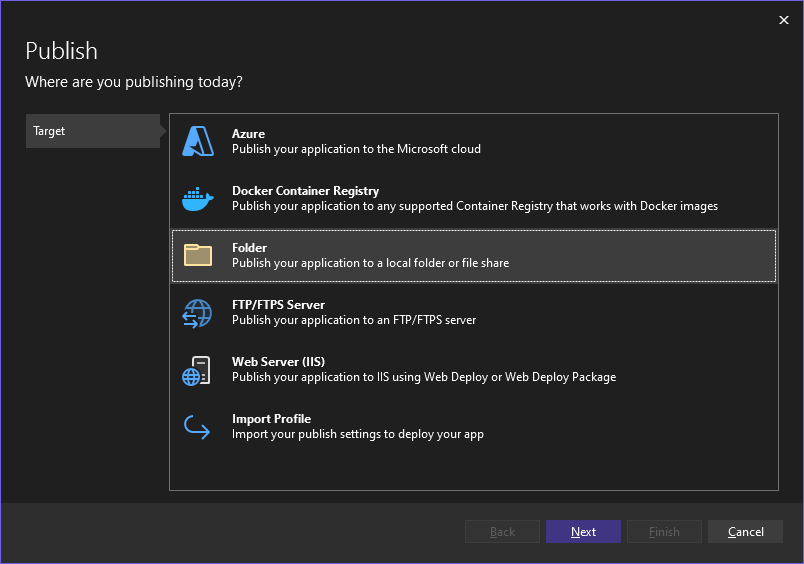

2. Select Folder in the next step.

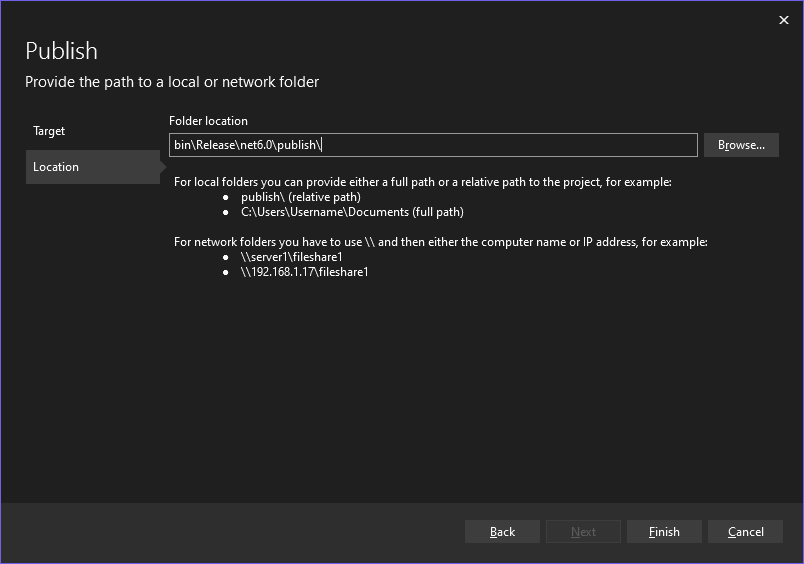

3. Select the folder location.

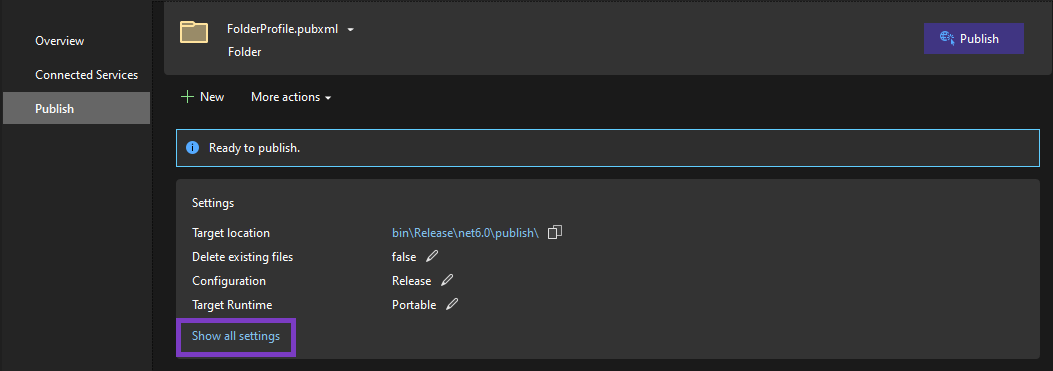

4. Click Show all settings to see publishing options. You will learn about those options in the next section.

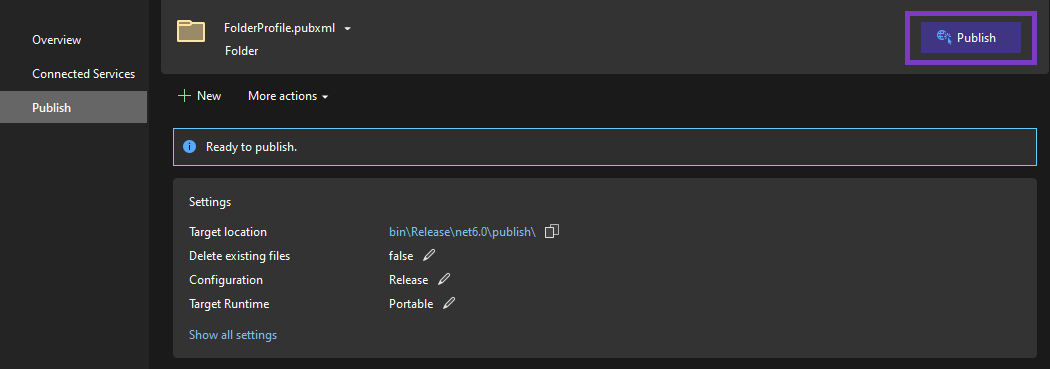

5. Click Publish to start publishing your website to a folder.

Compare between deployment modes

There are 2 deployment modes for Blazor Server. Besides, there are several publish options. We take the OnlineShop project for all measurements in this section. The following table is measured by just select the deployment mode without any publish options.

The following table is a comparison between publish options to without any publish options.

Set up the Linux VPS

When you bought a Linux VPS service, you will receive an IP, the username, and password to access the VPS. Use these information in Bitvise SSH Client to connect to the VPS machine.

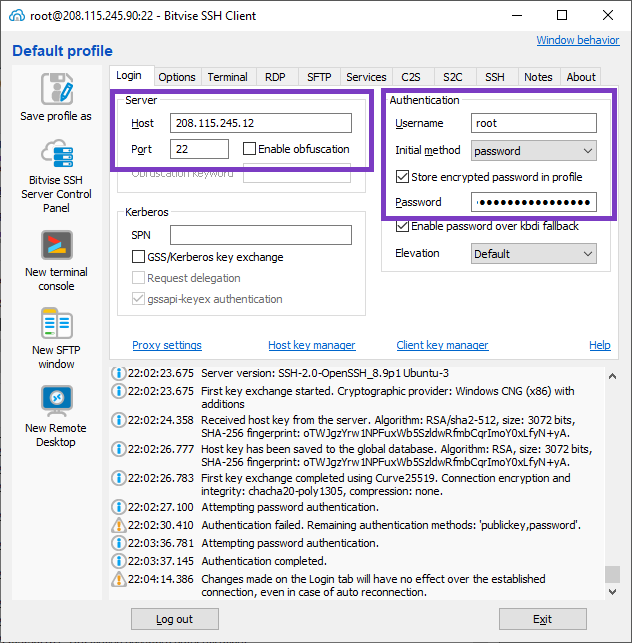

1. Run Bitvise SSH Client and connect to the VPS machine.

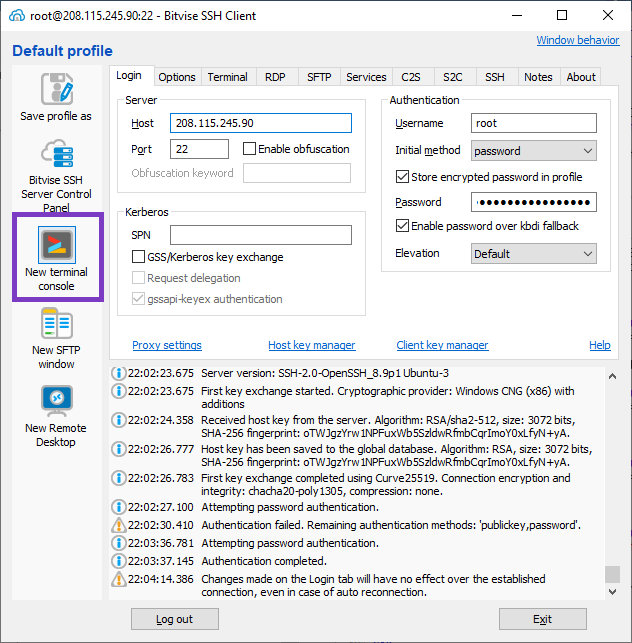

2. Click New terminal console to open a terminal console.

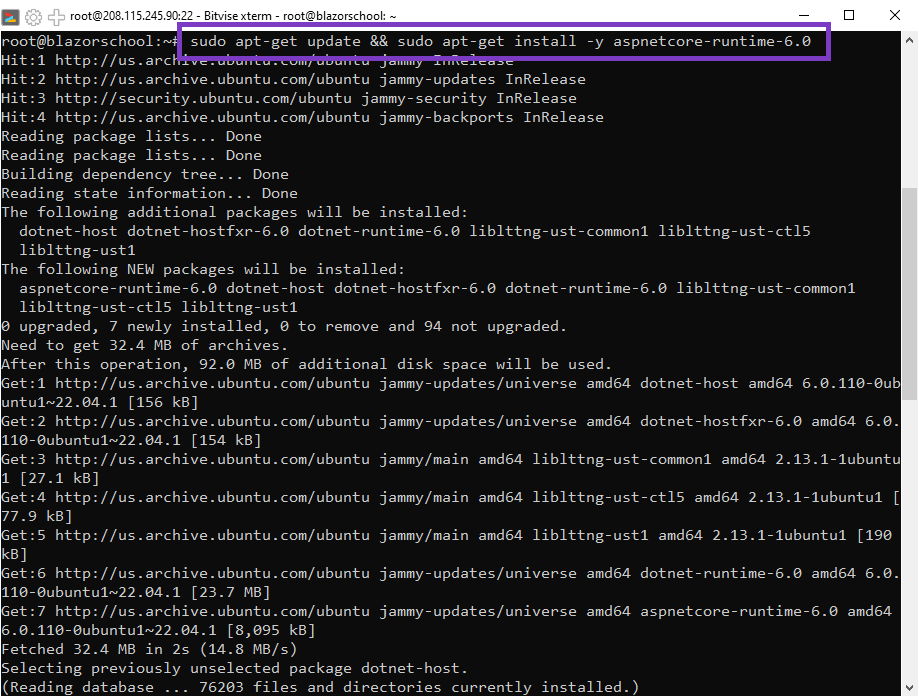

3. Install the .NET runtime. In the terminal console, run sudo apt-get update && sudo apt-get install -y aspnetcore-runtime-6.0:

Deploy your website manually

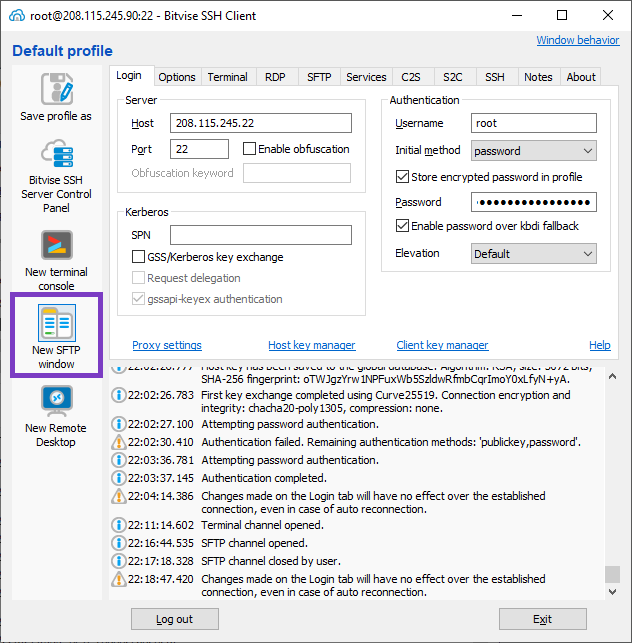

4. Back to the Bitvise SSH Client and click New SFTP window.

5. Create a folder in VPS, the recommended path is home/YOUR_WEBSITE.

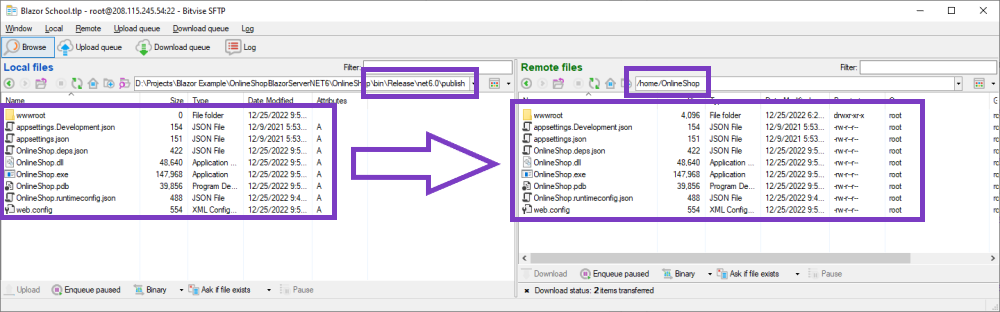

6. Copy the content in the bin\Release\net6.0\publish (default folder) folder to the folder you just created. Do not copy the content from bin\Release\net6.0 to the VPS.

Configuring Linux service

7. Open folder /etc/systemd/system and create a new file with the name YOUR_SERVICE.service with the following content.

[Unit]
Description=Online Shop

[Service]
Type=simple
User=root
WorkingDirectory=/home/OnlineShop
ExecStart=/usr/bin/dotnet OnlineShop.dll --urls=http://localhost:2023/
Restart=always
SyslogIdentifier=Online Shop
KillMode=process
StandardOutput=file:/home/log/log.log
StandardError=file:/home/log/error.log

[Install]
WantedBy=multi-user.target

WorkingDirectory is the folder location of your website (refer step 5).

StandardOutput and StandardError is the location of your log files on the VPS. Whenever your website encounters any error, the log will be stored there.

You will need to remember the --urls at the end of ExecStart to setup the NGINX later.

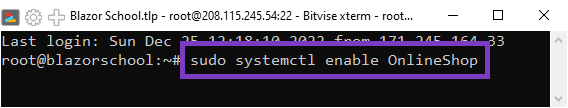

8. Run sudo systemctl enable YOUR_SERVICE to make the service starts automatically.

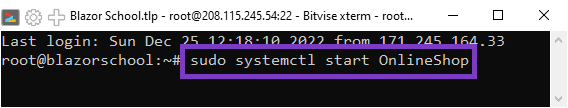

9. Start the service for the first time with sudo systemctl start YOUR_SERVICE.

Install and configure NGINX

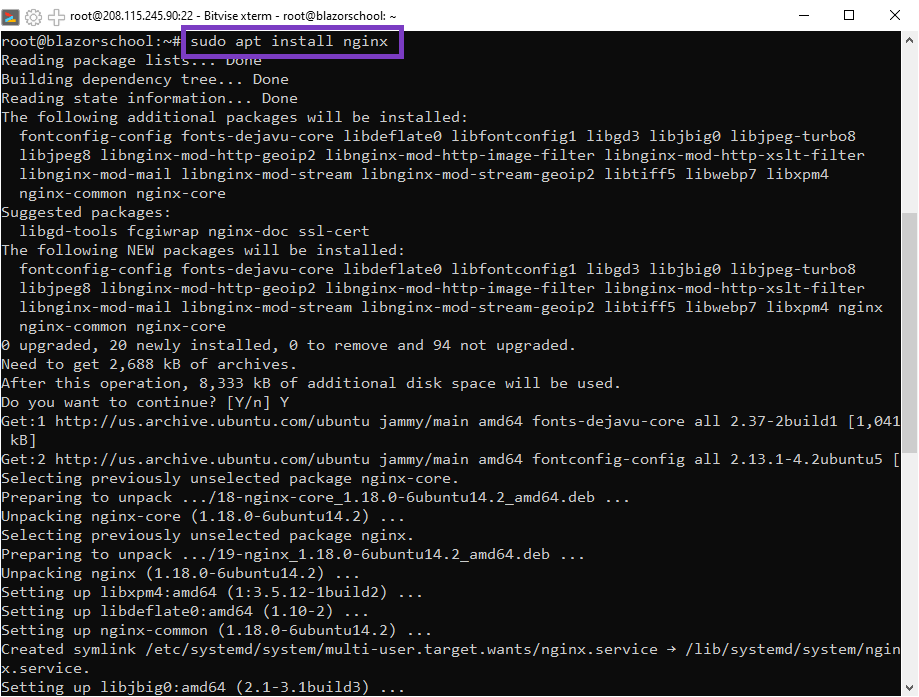

10. Run sudo apt install nginx.

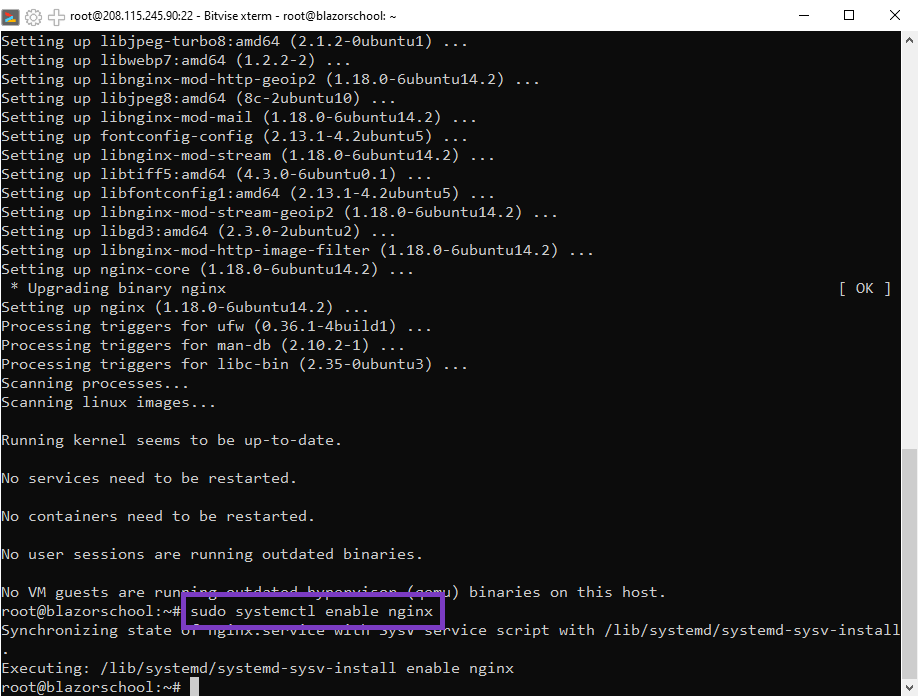

11. Run sudo systemctl enable nginx to start NGINX automatically.

12. Remove /etc/nginx/sites-enabled/default.
13. Create a new file in /etc/nginx/sites-enabled/ with the following content:

map $http_upgrade $connection_upgrade {
        default upgrade;
        '' close;
	}

server {
	listen 443 ssl http2;
	listen [::]:443 ssl http2;
	server_name _;
	ssl_certificate <your_path_to_pem_file>;
        ssl_certificate_key <your_path_to_pem_file>;

	location / {
            proxy_pass http://localhost:2023;
	    proxy_redirect   off;
	    proxy_set_header Host $host;
            proxy_set_header Upgrade $http_upgrade;
            proxy_set_header Connection $connection_upgrade;
        }
}

server {
	listen 80;
	listen [::]:80;
	server_name _;

	return 301 https://$host$request_uri;
}

server_name is your domain, separate by comma (,). For example: blazorschool.com, mywebsite.blazorschool.com.

For ssl_certificate and ssl_certificate_key you can get from an SSL certificate provider service like NPipes.

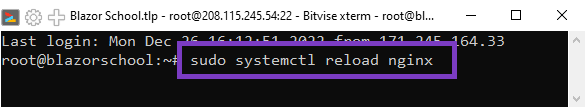

14. Run sudo systemctl reload nginx for the new settings to take effect.

After that, you can access your website with your domain (if you had your domain point to your VPS).

Speed up Blazor Server website

The following actions can help you to speed up the website you are hosting:

• Redirect HTTP to HTTPS. Make sure you also have an SSL certificate up and running.
• Check if MIME type is handled correctly.
• Enable gzip.

Redirect HTTP to HTTPS

If you follow the tutorial, you need not worry about this. The second block of server in the example redirects all HTTP to HTTPS protocol.

Check if MIME type is handled correctly

Handle MIME type is just about telling which file extension belongs to which group. For example, any file that ends with .css should be treated as text/css. There are many MIME type out there, and they need to be recognized differently. You can see the full list of MIME type in IANA Media Types.

To check if all of your file is handled correctly, open the /etc/nginx/mime.types file in the VPS server. If the MIME type you are using is not there, you need to add it and reload the NGINX server.

Enable gzip

Enabling gzip will help your website loads faster. Your website loads faster when it is lighter. When you are enabling gzip, NGINX will use some CPU to compress your website, then send it over to the browser. The browser then uncompress your website and display it accordingly. Because the process of compressing and uncompressing are cheaper than the transportation cost, so it will increase the website loading speed.

Gzip is also a razor blade, you can hurt yourself if you don't know what you are doing. To effectively gzip your website, you need to monitor and determine when to compress and when is not to. Gzip is enabled by default NGINX settings, you can find the setting in /etc/nginxnginx.conf. Look for the # Gzip Settings. To turn on advanced settings, you need to uncomment all other settings. Your Gzip settings should look like:

gzip on;
gzip_vary on;
gzip_proxied any;
gzip_comp_level 6;
gzip_buffers 16 8k;
gzip_http_version 1.1;
gzip_types
    text/plain
    text/css
    application/json
    application/javascript
    text/xml
    application/xml
    application/xml+rss
    text/javascript;

The gzip_types is the list of MIME types which will be compressed to smaller size, you can add some more to this list.

The gzip_comp_level is the level of compressing, ranging from 1 to 9 which 1 is least compressed and 9 is the most compressed. Higher compressing level compensate your CPU usage, and sometimes it becomes bigger than the original.

Some files, as mentioned above, after being compressed it becomes bigger. You need to add gzip_min_length X to tell NGINX not to compress if the size is less than X. There is no ideal number for this setting, you must monitor your website and give the decision.

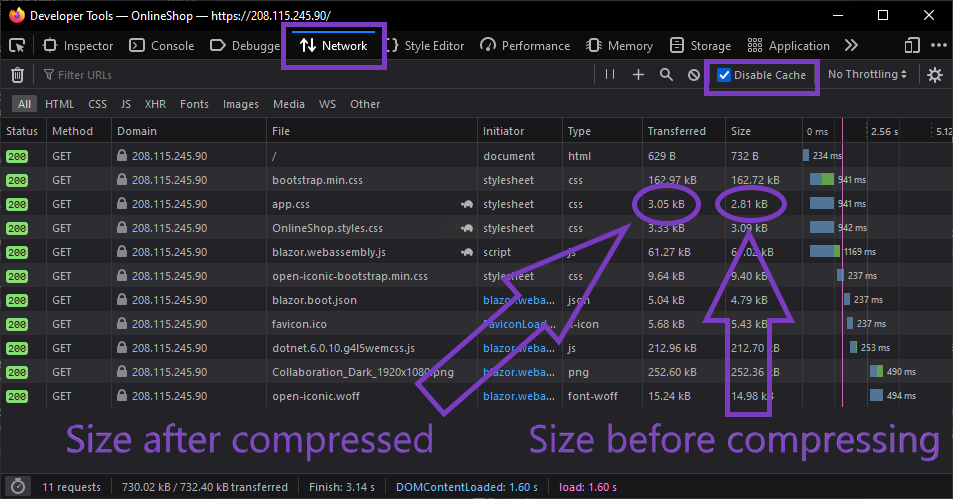

To see the effectiveness and ineffectiveness of the gzip, open your website, turn on the Web Developer Tools by pressing F12. Open the Network tab, check the Disable Cache option and reload the website:

If the size before compressing is larger than the size after compressed, then you should compress the file. Otherwise, don't compress (either remove the gzip_types or increase the gzip_min_length X).

Setup GitHub action

Up until this point, you have a healthy website up and running. The next step is to set up a deployment pipeline, so you don't have to manually deploy whenever the website updates. GitHub is a good way to set up the deployment pipeline.

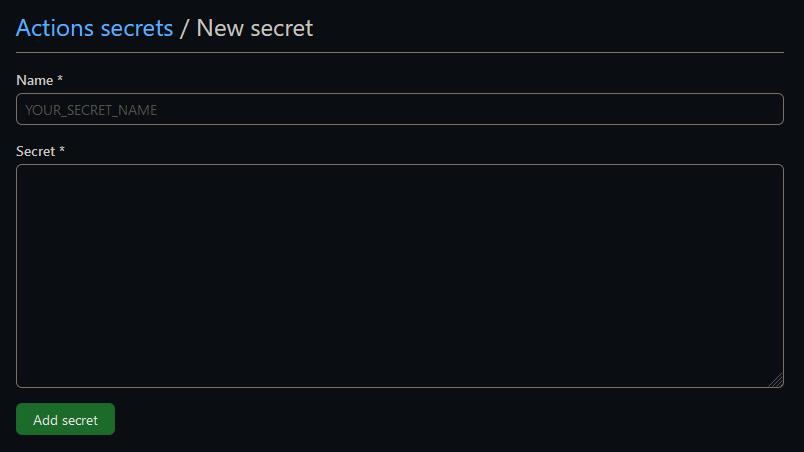

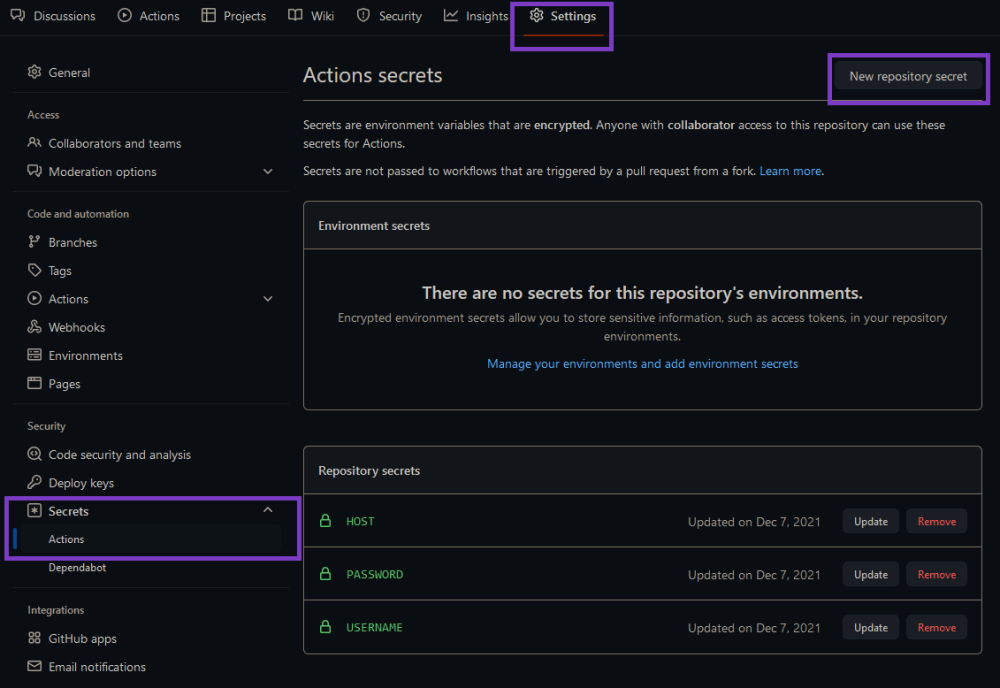

1. In the GitHub repository, navigate to Settings > Secrets > Actions. Click the New repository secret.

2. Create 3 secret keys for Host address, username, and password to logging your VPS machine.

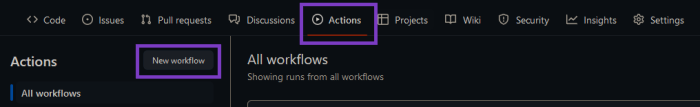

3. Switch to Action tab, and click on the New workflow button.

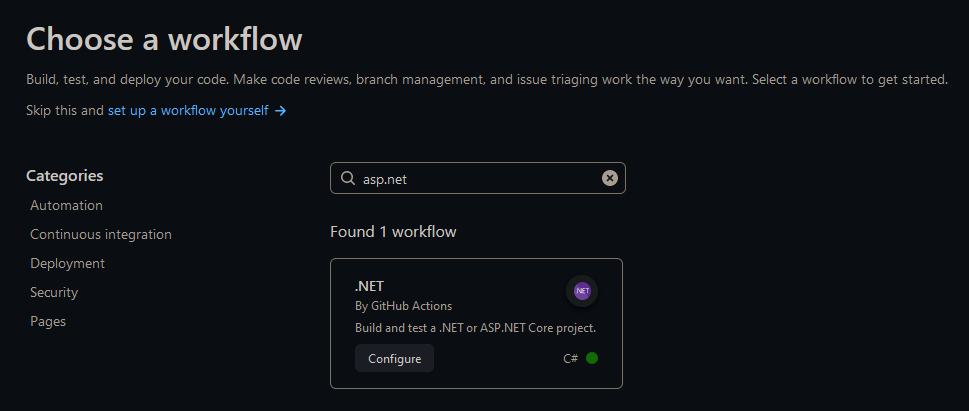

4. Search for ASP.NET workflow and select .NET by GitHub Actions.

5. Update the yml file. This is an example file:

name: Deploy to VPS
on:
  push:
    branches:
    - master
env:
  CONFIGURATION: Release
  DOTNET_CORE_VERSION: 6.x.x
  WORKING_DIRECTORY: <your_project_name>
  WORKING_OUTPUT_DIRECTORY: deploy
  VPS_WEB_DIRECTORY: <your_folder_location_in_vps>
jobs:
  build-and-deploy:
    runs-on: ubuntu-latest
    steps:
    - uses: actions/checkout@v2
    - name: Setup .NET Core
      uses: actions/setup-dotnet@v1
      with:
        dotnet-version: ${{ env.DOTNET_CORE_VERSION }}
    - name: Restore web
      run: dotnet restore "${{ env.WORKING_DIRECTORY }}"
    - name: Build web
      run: dotnet build "${{ env.WORKING_DIRECTORY }}" --configuration ${{ env.CONFIGURATION }} --no-restore
    - name: Test web
      run: dotnet test "${{ env.WORKING_DIRECTORY }}" --no-build
    - name: Publish web
      run: dotnet publish "${{ env.WORKING_DIRECTORY }}" --configuration ${{ env.CONFIGURATION }} --no-build --output "${{ env.WORKING_OUTPUT_DIRECTORY }}"

    - name: Copy web via ssh
      uses: garygrossgarten/github-action-scp@master
      with:
        local: ${{ env.WORKING_OUTPUT_DIRECTORY }}
        remote: ${{ env.VPS_WEB_DIRECTORY }}
        host: ${{ secrets.HOST }}
        username: ${{ secrets.USERNAME }}
        password: ${{ secrets.PASSWORD }}

    - name: Restart <your_service> service
      uses: garygrossgarten/github-action-ssh@master
      with:
        host: ${{ secrets.HOST }}
        command: |
                systemctl daemon-reload
                systemctl restart <your_service>
        username: ${{ secrets.USERNAME }}
        password: ${{ secrets.PASSWORD }}

From the example, you need to change GITHUB_OUTPUT_DIRECTORY, VPS_WEB_DIRECTORY to your folder. The GITHUB_OUTPUT_DIRECTORY can be anything, but the VPS_WEB_DIRECTORY needs to be existed before running this workflow.

The on key: decide when to deploy the website. In this example, it is deployed whenever a push on master branch.

You need to update the secret keys in the Copy web via ssh job as well.

Common mistakes

In this section, we have collected some common mistakes from the Blazor School Discord Community.

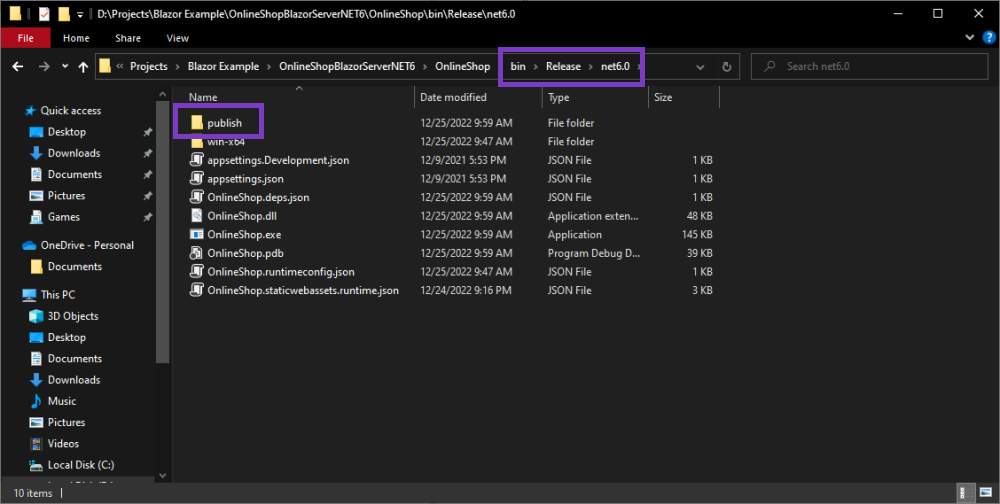

Mistake #1: Not using correct folder to deploy.

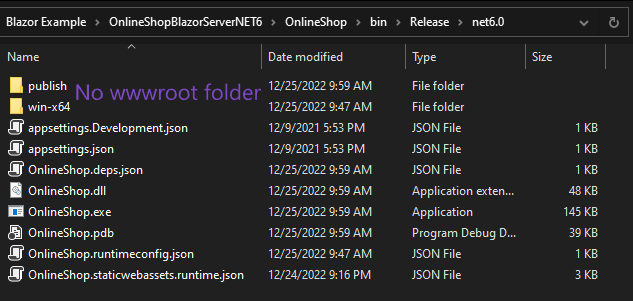

When publishing your project, you will see there are 2 folders: bin\Release\net6.0\ and bin\Release\net6.0\publish\.

However, you should never use bin\Release\net6.0\ to deploy. Instead, you should use bin\Release\net6.0\publish\.

What happen if I use bin\Release\net6.0\ to deploy?

Some files will not be serve because there is no wwwroot folder in that folder.

Mistake #2: Files are case-sensitive

By default, NGINX searches the files with case-sensitive enabled. For example, you are trying to access a picture from your website, the picture file name is wwwroot/Logo.png, and you type <your_website>.com/logo.png; You will get an 404 error because there is not a file name wwwroot/logo.png.
